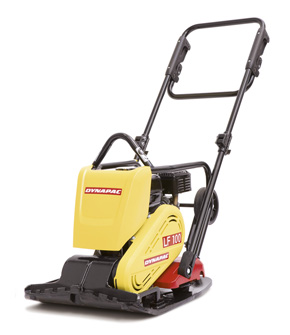

Dynapac LF100 Forward Plate Compactor
$1 679.00
Model
Please choose
In stock: 16 available
Product Details
LF100 (GX160) - Gas; LF100 (1B20) - Deisel
Technical data
Dynapac offers a comprehensive range of forward plates that are specially designed for compacting asphalt and granular soils. They are ideal and most economical for small repair and maintenance work, such as driveways and pathways, parking lots and back-filling in trenches. Forward plates are also a complement to rollers that may not be able to operate effectively in confined spaces. The range of Forward plates are an economical alternative or complement to a roller. These all-round machines are specially designed to compact soil in confined areas, such as in trenches and parking lots, among other areas. Forward plates are also suitable for special applications, such as block paving.
A high-capacity asphalt plate. Dynapacâs unique water distribution system gives an optimal result on asphalt. Excellent manoeuvrability. Petrol and diesel versions available.
| Dynapac LF100 (GX160) Gas Forward Plate Compactor | |
|---|---|
| Dimensions | |
| Plate width | 19.69 in |
| Plate length | 23.43 in |
| Length | 40.83 in |
| Height | 43.94 in |
| Masses | |
| Operating mass (CE) | 209 lbs |
| Net mass | lbs |
| Transport wheels | 9 lbs |
| Protection frame | 5 lbs |
| Propulsion | |
| Max speed | 0.93 mph |
| Compaction | |
| Vibration frequency | 5,690 vpm |
| Centrifugal force | 3,800 lb |
| Nominal amplitude | 0.035 in |
| Engine | |
| Manufacturer/Model | Honda GX160 |
| Rated power | 5.50 hp |
| Fuel | Petrol |
| Sound and vibration values | |
| Sound pressure level at the operator's ear (EN 500-4), LpA | 93 dB(A) |
| Hand and arm vibrations (EN500-4), standard handle | 6.0 m/s² |
| Guaranteed sound power level, LwA | 104 dB(A) |
| Hand and arm vibrations (EN500-4), vibration reduced handle | 1.30 m/s² |
| Specifications | |
| Part Number | |
| Operations and Maintenance Manual | ILF100-1EN |
| Dynapac LF100 (1B20) Deisel Forward Plate Compactor | |
|---|---|
| Dimensions | |
| Plate width | 19.69 in |
| Plate length | 23.43 in |
| Length | 40.83 in |
| Height | 43.94 in |
| Masses | |
| Operating mass (CE) | 229 lbs |
| Net mass | lbs |
| Transport wheels | 9 lbs |
| Protection frame | 5 lbs |
| Propulsion | |
| Max speed | 0.93 mph |
| Compaction | |
| Vibration frequency | 5,690 vpm |
| Centrifugal force | 3,800 lb |
| Nominal amplitude | 0.035 in |
| Engine | |
| Manufacturer/Model | Hatz 1B20 |
| Rated power | 3.3 hp |
| Fuel | Diesel |
| Sound and vibration values | |
| Sound pressure level at the operator's ear (EN 500-4), LpA | 93 dB(A) |
| Hand and arm vibrations (EN500-4), standard handle | 9.3 m/s² |
| Guaranteed sound power level, LwA | 104 dB(A) |
| Hand and arm vibrations (EN500-4), vibration reduced handle | 1.90 m/s² |
| Specifications | |
| Part Number | |
| Operations and Maintenance Manual | ILF100-1EN |
| P/N | 4812099060 |
