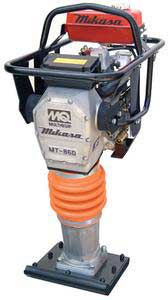

Multi-Quip MT86D2 Diesel Powered Rammer
The MT86D2 is Multiquip's hardest-hitting rammer.
Low center of gravity for better control
Standard 13-inch (330 mm) shoe, optional 15-inch (381 mm) shoe
Weighs 199 pounds (89.8 kg)
Reinforced bellows with cross-hatch ribbing for extra strength
360-degree continuous clutch-shoe coverage
Optional foot extensions available for trench work
ENGINE SPECIFICATIONS
Model
MT86D2
Engine Make/Model
Yanmar L48V
Start Method
Recoil
Engine Power
4.5 HP
Engine RPM
3300
Fuel Type
Diesel
Blows Per Min.
Up to 700
Impact Force
4400 lb
Fuel Tank Capacity
3.5 qt
Travel Speed Per Min.
46 ft
Max Area Capacity Per Hour
2714 sq. ft
Fuel Consumption Per Hour
0.211 gal
Overall Length
29.5 in
Overall Width
16.25 in
Overall Height
42 in
Shipping Dimensions
30 x 17 x 46 in
Operating Weight
198 lb
Shipping Weight
215 lb
Variable speed impact - up to maximum impact force. Specifications are in accordance with CIMA-LEMB Standard No. 1.
