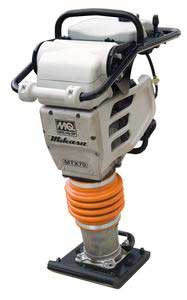

Multi-Quip MTX90 4-Cycle Gas Rammer
Robin EH-122D, 3710 lbs force 11.2 in shoe
The MTX90 is Multiquip's hardest hitting rammer. It generates 3,710 pounds (1,683 kg) of impact force and is ideal for deep lift applications.
Patent pending clutch incorporates self-cleaning drum that lowers maintenance and increases service life
Throttle controls engine speed, start/stop functions and fuel shut-off
Digital tachometer and hourmeter
Cyclone air filter triples the amount of clean air to the engine, lengthening component life and reducing maintenance
Anti-vibration system (AVS) decreases vibration to the operator to reduce fatigue
.
Specifications
Model
MTX90
Blows Per Min.
Up to 696*
Impact Force
3710 lbf
16.5 kN
Shoe Jump Height
3.1 in
79 mm
Shoe Dimensions (LxW)
13.4 x 11.2 in
340 x 284 mm
Travel Speed Per Min.
45.9 ft
14 m
Fuel Tank Capacity
3.2 qt
3.03 L
Fuel Consumption Per Hour
0.27 gal
1.02 L
Overall Length
31 in
788 mm
Overall Width
14.4 in
365 mm
Overall Height
29.4 in
1000 mm
Operating Weight
196 lb
80 kg
Engine Make/Model
Robin EH12-2D
Start Method
Recoil
Engine Power
3.5 HP
2.6 kW
Engine RPM
3600
Fuel TypeGasoline
Notes: *Variable speed impact â up to maximum impact force.
Notice: Features and equipment specifications are subject to change without notice.
